Detailed Product Description
Thickness:0.14-3.0mmCoil Width:600-1250mm
Paint Thickness:Min:15um;max:25umBase Metal:Hot Dipped Galvanized Steel
ZN Weight:40-275g /m2Coil Weight:4-6 Ton
Ral Color Embossed Color Coated Steel Coil , 0.16mm - 0.8mm Painted Steel Coil

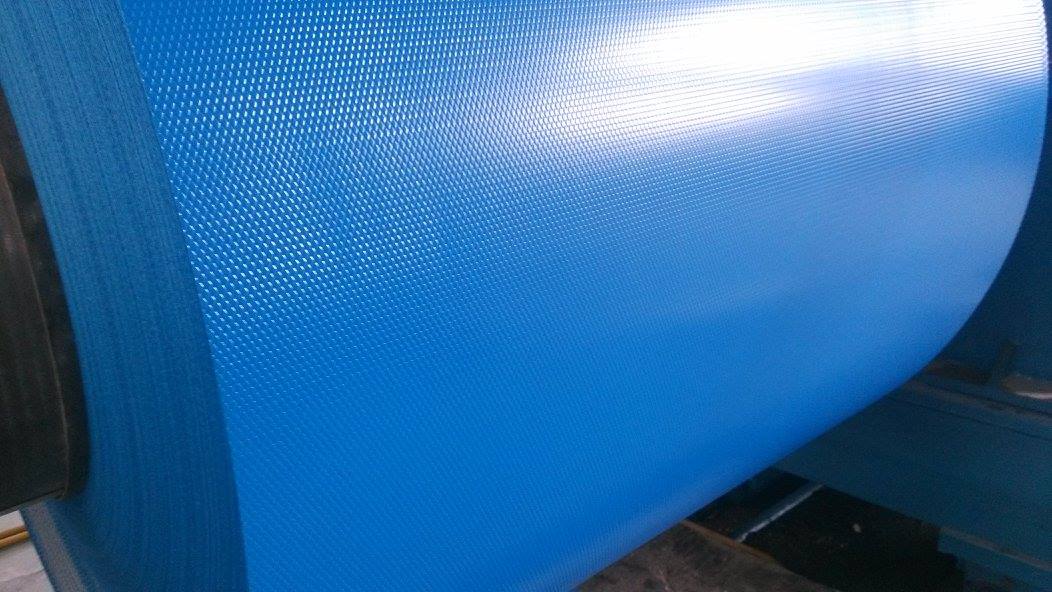

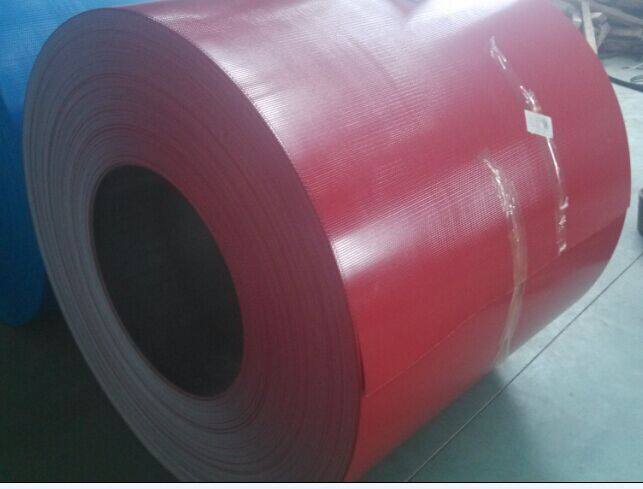

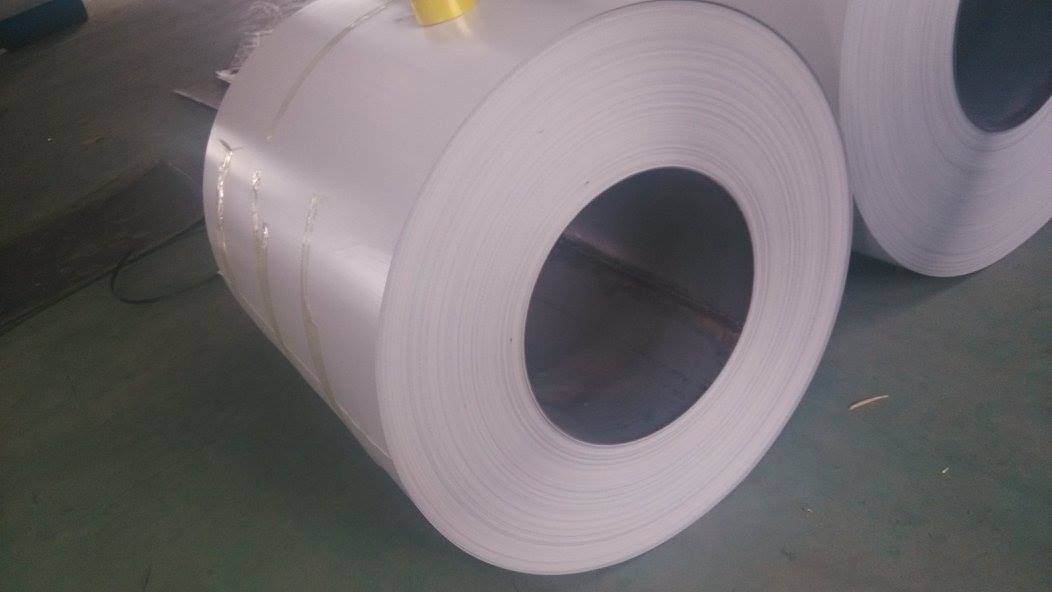

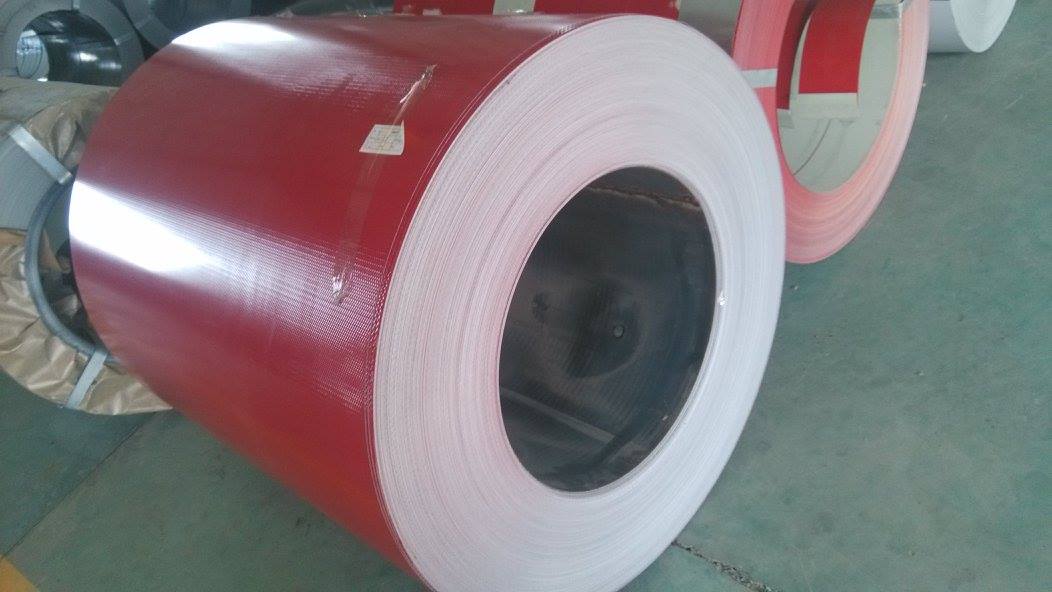

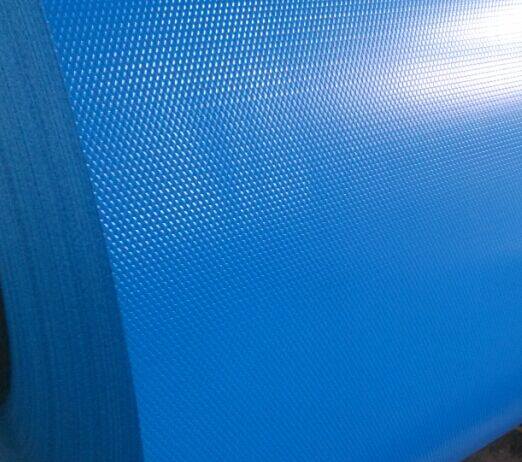

Embossed Color coated Steel coil
Applications:
Mainly applied to decoration for interior and exterior walls and indoor items.
Specifications:
Base MetalHot dipped galvanized steelDX51D+ZNormal use
DX52D+ZFor drawing
DX53D+ZFor deep drawing
S280GD+ZStructure
S350GD+ZStructure
S550GD+ZFor high-strength structure
Hot dipped galvalume steelDX51D+AZNormal use
DX52D+AZFor drawing
DX53D+AZFor deep drawing
S280GD+AZStructure
S350GD+AZStructure
S550GD+AZFor high-strength structure
Thickness0.18mm-1.6mm
Width600mm-1500mm
Coil ID508mm, 610mm
Layers of the coating
2/2(2 layers of top coating/2 layers of bottom coating);
2/1(2 layers of the top coating, 1 layer of bottom coating);
1/1(single layer of top coating/ single layer)
ColorAccording to customers’ request
CoatedZN60-ZN275 or AZ60-AZ180
PaintPE, HDP, SMP, HPC, PVDM
Thickness of the coating25um-75um
Surfaceembossed
